Panasonic Electronic Components
CAP ALUM 5600UF 20% 25V SNAP

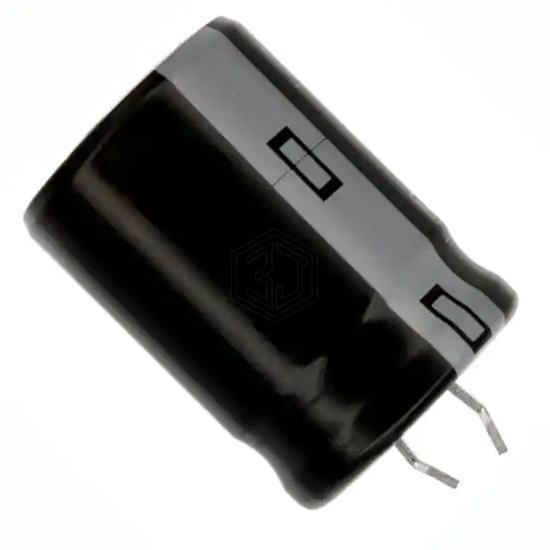

ECO-S1EA562BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,633
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 89mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA562BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ562M035J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V SNAP | 86% | View |
| EKMH250VSN562MP25T | United Chemi-Con | CAP ALUM 5600UF 20% 25V SNAP | 84% | View |
| MALREKC00JK456D00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5.6MF 20% 16V RADIAL | 80% | View |
| RXK562M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 76% | View |
| 6.3YXG5600MEFC12.5X35 | Rubycon | CAP ALUM 5600UF 20% 6.3V RADIAL | 74% | View |
| ELXZ6R3ELL562ML20S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 72% | View |
