Panasonic Electronic Components
CAP ALUM 27000UF 20% 25V SNAP

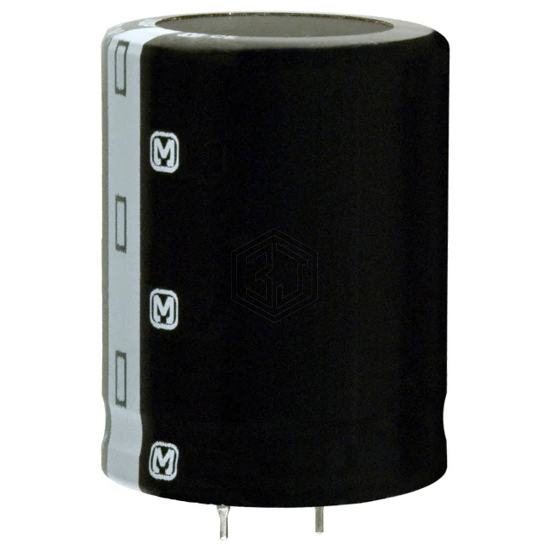

ECO-S1EA273EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 27000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,012
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.52 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA273EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215886273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 27000UF 20% 25V SNAP | 97% | View |
| ALC80A273DC025 | KEMET | CAP ALUM 27000UF 20% 25V SNAP | 79% | View |
| MAL215845273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 27000UF 20% 16V SNAP | 79% | View |
| 16MXG27000MEFCSN30X30 | Rubycon | CAP ALUM 27000UF 20% 16V SNAP | 76% | View |
| 16MXC27000MEFC25X40 | Rubycon | CAP ALUM 27000UF 20% 16V SNAP | 76% | View |
| 10MXC27000MEFC25X40 | Rubycon | CAP ALUM 27000UF 20% 10V SNAP | 58% | View |
Submit your RFQ for ECO-S1EA273EA and get a quote within 24 hours.
