Panasonic Electronic Components
CAP ALUM 22000UF 20% 25V SNAP

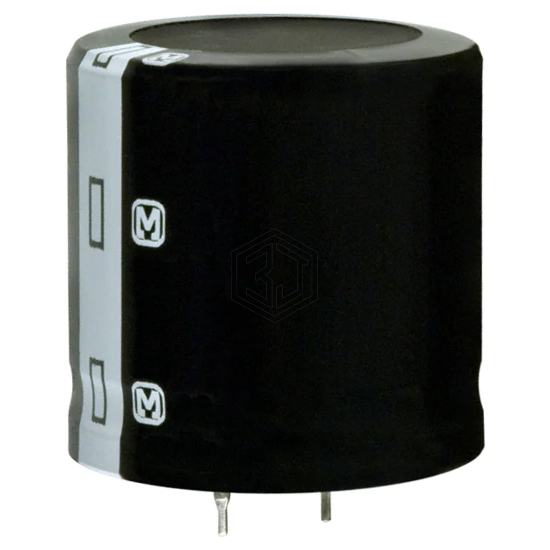

ECO-S1EA223EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 3,563
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.945 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA223EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B5229M | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 25V SNAP | 100% | View |
| 25MXC22000MEFC25X50 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 97% | View |
| LP223M025H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 25V SNAP | 95% | View |
| MAL216256223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 89% | View |
| KMH35VN223M35X50T2 | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 85% | View |
| 35MXC22000MEFCSN35X40 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 83% | View |
Submit your RFQ for ECO-S1EA223EA and get a quote within 24 hours.
