Panasonic Electronic Components

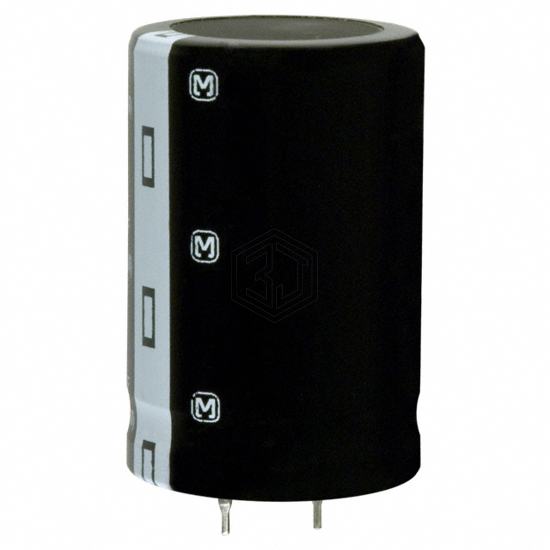

CAP ALUM 22000UF 20% 25V SNAP
ECO-S1EA223DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,613
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.945 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA223DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VNN223MR45U | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 96% | View |
| EKMH250VSN223MA35S | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 91% | View |
| 383LX223M035N042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 83% | View |
| B41505A4229M2 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 75% | View |
| LGY1C223MELB35 | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 74% | View |
| LGU1C223MELC | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 73% | View |
Submit your RFQ for ECO-S1EA223DA and get a quote within 24 hours.
