Panasonic Electronic Components

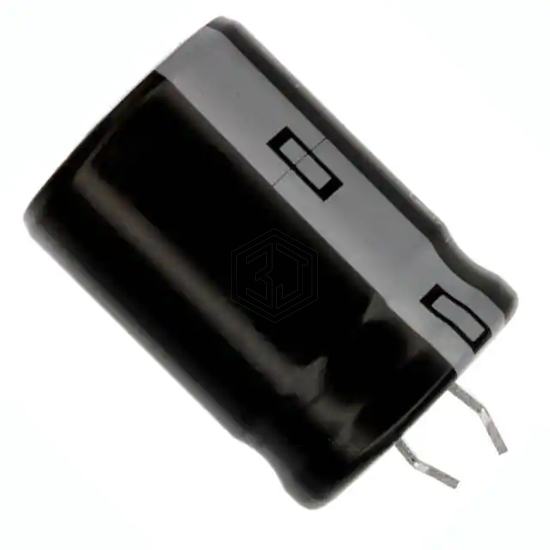

CAP ALUM 2200UF 20% 25V SNAP
ECO-S1EA222BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 8,126
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 241mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.495 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA222BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 228CKE025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 25V RADIAL | 95% | View |
| 604D222F030HP7 | Vishay Sprague | CAP ALUM 2200UF 30V AXIAL | 88% | View |
| B41866E5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 88% | View |
| EEU-FK1E222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RAD TH | 81% | View |
| EEU-TA1C222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 69% | View |
| MAL214034222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 62% | View |
Submit your RFQ for ECO-S1EA222BA and get a quote within 24 hours.
