Panasonic Electronic Components

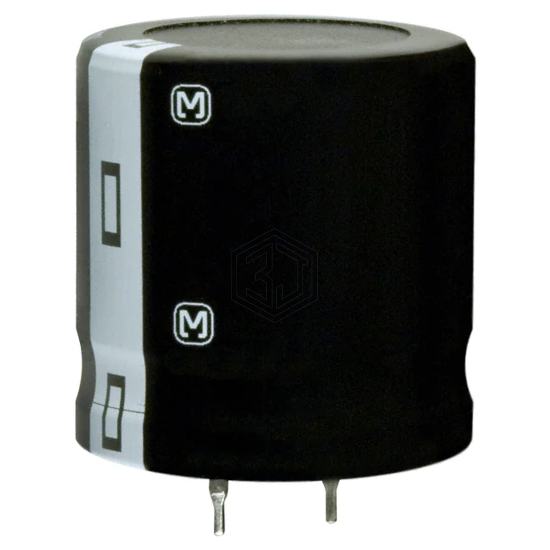

CAP ALUM 10000UF 20% 25V SNAP
ECO-S1EA103DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 3,629
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 51mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA103DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH350VSN103MR35U | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 87% | View |
| EKMH350VSN103MR35T | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 87% | View |
| UVZ1E103MRH | Nichicon | CAP ALUM 10000UF 20% 25V RADIAL | 84% | View |
| LP103M035H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 35V SNAP | 78% | View |
| EKMH500VSN103MA40T | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 66% | View |
| VHT10000M50 | NTE Electronics, Inc | CAP ALUM 10000UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for ECO-S1EA103DA and get a quote within 24 hours.
