Panasonic Electronic Components
CAP ALUM 68000UF 20% 16V SNAP

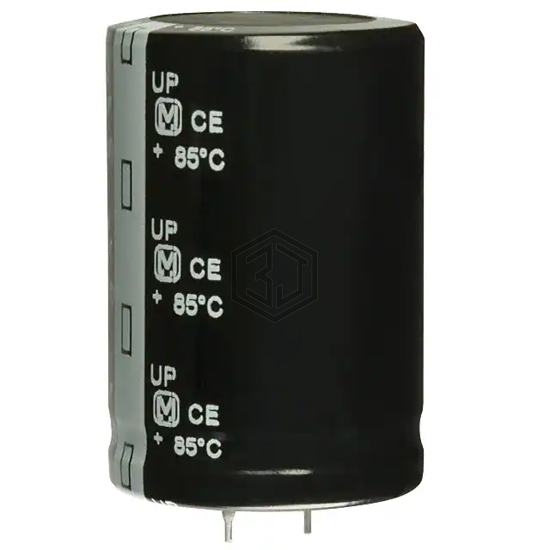

ECO-S1CP683EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 2,556
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.41 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP683EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX683M016A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 20% 16V SNAP | 100% | View |
| 16USG68000MEFCSN35X45 | Rubycon | CAP ALUM 68000UF 20% 16V SNAP | 97% | View |
| 16MXC68000MEFCSN35X50 | Rubycon | CAP ALUM 68000UF 20% 16V SNAP | 83% | View |
| EKMH160VNN683MA63U | United Chemi-Con | CAP ALUM 68000UF 20% 16V SNAP | 82% | View |
| ESMH350VQT683MB80U | United Chemi-Con | CAP ALUM 68000UF 20% 35V RAD | 63% | View |
| EKMH100VSN683MA50S | United Chemi-Con | CAP ALUM 68000UF 20% 10V SNAP | 60% | View |
Submit your RFQ for ECO-S1CP683EA and get a quote within 24 hours.
