Panasonic Electronic Components
CAP ALUM 6800UF 20% 16V SNAP

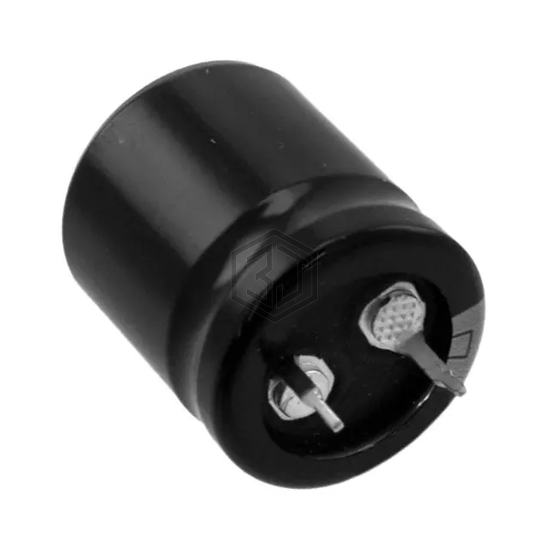

ECO-S1CP682BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 1,090
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 110mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.956 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP682BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVK1A682MHD1TN | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 79% | View |
| URZ1C682MHD1TN | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 76% | View |
| SLPX682M035A7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 70% | View |
| 6.3ZLH6800MEFCGC16X20 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 67% | View |
| MAL225658682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 62% | View |
| EKMH800VND682MA50U | United Chemi-Con | CAP ALUM 6800UF 20% 80V SNAP | 58% | View |
Submit your RFQ for ECO-S1CP682BA and get a quote within 24 hours.
