Panasonic Electronic Components

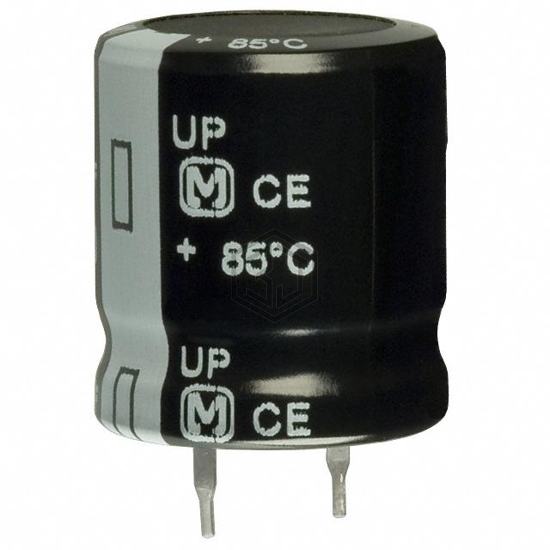

CAP ALUM 6800UF 20% 16V SNAP
ECO-S1CP682AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 9,578
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 98mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.623 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP682AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80D682P025KB2DE3 | Vishay Sprague | CAP ALUM 6800UF 25V SNAP | 84% | View |
| 381LQ682M050H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 77% | View |
| VHT6800M25 | NTE Electronics, Inc | CAP ALUM 6800UF 20% 25V RADIAL | 71% | View |
| ESMH500VNN682MQ40S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| B41505A8688M002 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 63V SNAP | 67% | View |
| 25MXG6800MEFCSN20X35 | Rubycon | CAP ALUM 6800UF 20% 25V SNAP | 67% | View |
Submit your RFQ for ECO-S1CP682AA and get a quote within 24 hours.
