Panasonic Electronic Components

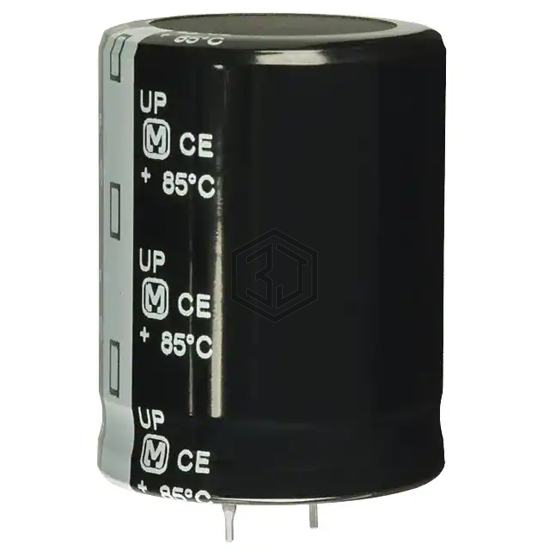

CAP ALUM 56000UF 20% 16V SNAP
ECO-S1CP563EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.73 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.04 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP563EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41231A4569M002 | EPCOS - TDK Electronics | CAP ALUM 56000UF 20% 16V SNAP | 97% | View |
| ESMH160VNN563MA45S | United Chemi-Con | CAP ALUM 56000UF 20% 16V SNAP | 92% | View |
| 382LX563M025N052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 56000UF 20% 25V SNAP | 85% | View |
| 382LX563M050B082V | Cornell Dubilier Electronics (CDE) | CAP ALUM 56000UF 20% 50V SNAP | 62% | View |
| ESMH6R3VSN563MR40U | United Chemi-Con | CAP ALUM 56000UF 20% 6.3V SNAP | 57% | View |
| EKMH100VSN563MR50U | United Chemi-Con | CAP ALUM 56000UF 20% 10V SNAP | 54% | View |
Submit your RFQ for ECO-S1CP563EA and get a quote within 24 hours.
