Panasonic Electronic Components

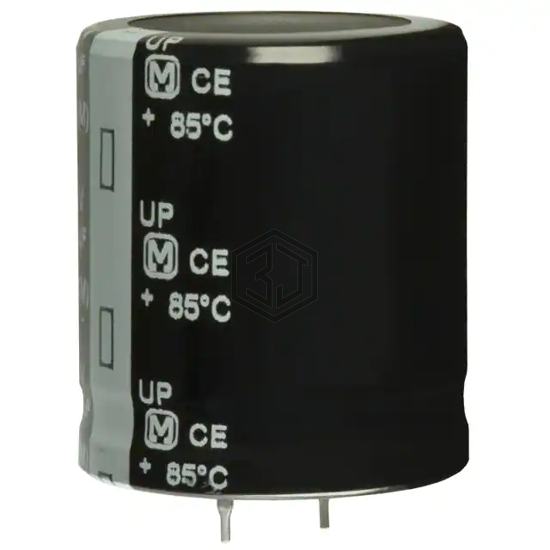

CAP ALUM 47000UF 20% 16V SNAP
ECO-S1CP473EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 3,601
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.591 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP473EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 479LBB016M2DH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47000UF 20% 16V SNAP | 97% | View |
| MAL215845473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 16V SNAP | 92% | View |
| EKMH160VSN473MA45S | United Chemi-Con | CAP ALUM 47000UF 20% 16V SNAP | 83% | View |
| MAL205674473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 10V SNAP | 68% | View |
| SLP473M010E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 10V SNAP | 61% | View |
| MAL205157473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 40V RADIAL | 61% | View |
Submit your RFQ for ECO-S1CP473EA and get a quote within 24 hours.
