Panasonic Electronic Components

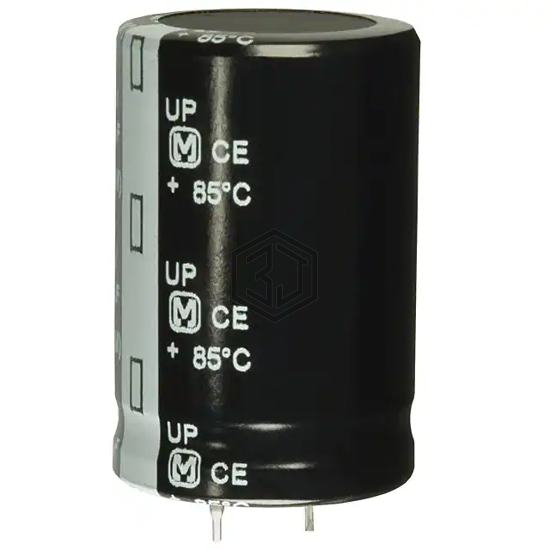

CAP ALUM 39000UF 20% 16V SNAP
ECO-S1CP393DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 39000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 8,721
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.94 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.981 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP393DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07CB539D02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 16V SNAP | 90% | View |
| EKMH160VSN393MA40U | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 81% | View |
| B41231A5399M002 | EPCOS - TDK Electronics | CAP ALUM 39000UF 20% 25V SNAP | 80% | View |
| ECE-T1HA393FA | Panasonic Electronic Components | CAP ALUM 39000UF 20% 50V SNAP | 75% | View |
| ECE-T1VP393EA | Panasonic Electronic Components | CAP ALUM 39000UF 20% 35V SNAP | 73% | View |
| 380LX393M035A062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 39000UF 20% 35V SNAP | 67% | View |
Submit your RFQ for ECO-S1CP393DA and get a quote within 24 hours.
