Panasonic Electronic Components

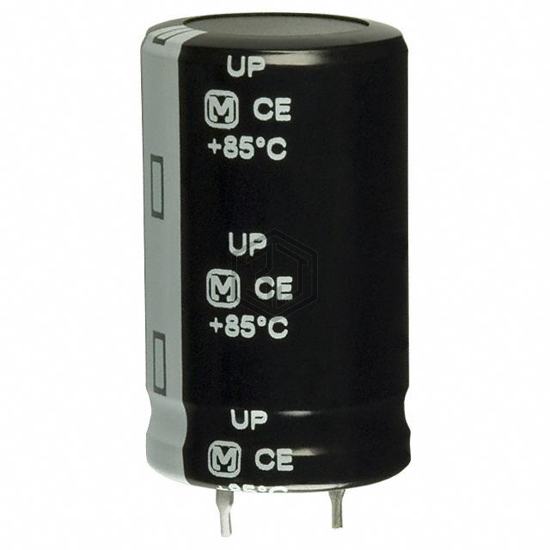

CAP ALUM 15000UF 20% 16V SNAP
ECO-S1CP153AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 5,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 53mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.049 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP153AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYN07BU515D42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 16V SNAP | 95% | View |
| LPW153M1CN45V-W | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 16V SNAP | 81% | View |
| MAL205646153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 25V SNAP | 72% | View |
| ESMH500VSN153MA45S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 71% | View |
| MAL215618153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 63V SNAP | 68% | View |
| LGY1E153MELB35 | Nichicon | CAP ALUM 15000UF 20% 25V SNAP | 58% | View |
Submit your RFQ for ECO-S1CP153AA and get a quote within 24 hours.
