Panasonic Electronic Components

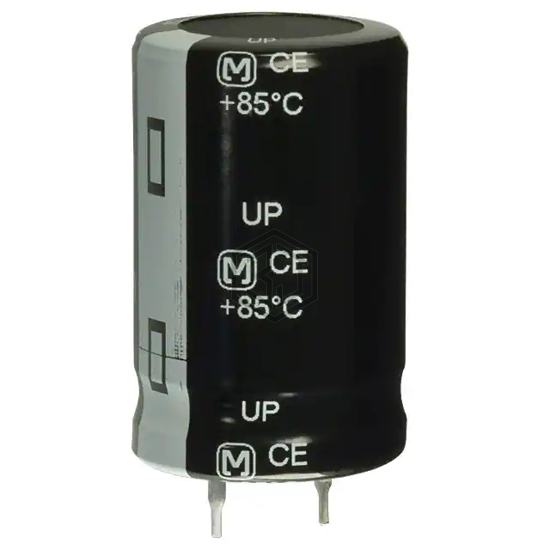

CAP ALUM 10000UF 20% 16V SNAP
ECO-S1CP103AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,796
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.347 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CP103AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D109G015JS2 | Vishay Sprague | CAP ALUM 10000UF 15V AXIAL | 96% | View |
| EKMH500VSN103MR50S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 77% | View |
| ESMH250VSN103MP40U | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 75% | View |
| ESMH350VNN103MA25U | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 67% | View |
| EKMH350VNN103MR35W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 65% | View |
| EKMH350VNN103MR35U | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 65% | View |
Submit your RFQ for ECO-S1CP103AA and get a quote within 24 hours.
