Panasonic Electronic Components

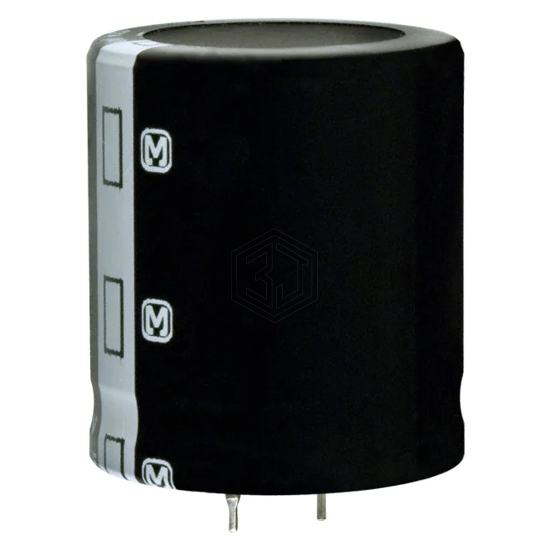

CAP ALUM 39000UF 20% 16V SNAP
ECO-S1CA393EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 39000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 4,343
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 22mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.865 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CA393EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B4399M000 | EPCOS - TDK Electronics | CAP ALUM 39000UF 20% 16V SNAP | 100% | View |
| LGU1C393MELB | Nichicon | CAP ALUM 39000UF 20% 16V SNAP | 97% | View |
| EKMH160VSN393MA40U | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 95% | View |
| KMH16VN393M35X40T2 | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 95% | View |
| EKMH100VSN393MR40U | United Chemi-Con | CAP ALUM 39000UF 20% 10V SNAP | 69% | View |
| 383LL383M035N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 38000UF 20% 35V SNAP | 54% | View |
Submit your RFQ for ECO-S1CA393EA and get a quote within 24 hours.
