Panasonic Electronic Components
CAP ALUM 22000UF 20% 16V SNAP

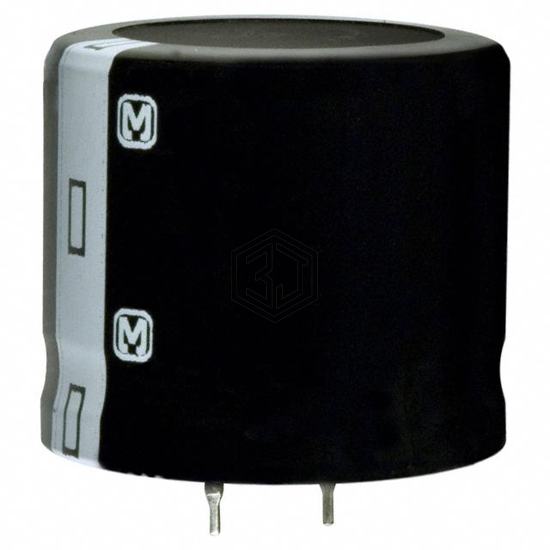

ECO-S1CA223EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 3,935
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 33mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.37 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1CA223EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH160VNN223MR35W | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 92% | View |
| EKMH160VNN223MQ45S | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 92% | View |
| MAL205875223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 16V SNAP | 91% | View |
| 25MXG22000MEFCSN30X35 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 84% | View |
| LP223M025E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 25V SNAP | 71% | View |
| MAL215836223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 69% | View |
Submit your RFQ for ECO-S1CA223EA and get a quote within 24 hours.
