Panasonic Electronic Components

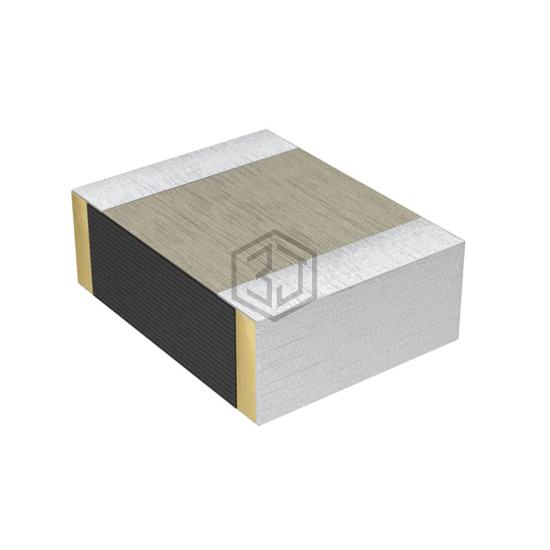

CAP FILM 0.15UF 5% 50VDC 2416
ECH-U1H154JX9 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.15UF 5% 50VDC 2416. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 50V, package / case 2416 (6041 Metric).
In Stock: 14,923
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.15 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 30V |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2416 (6041 Metric) |
| Size / Dimension | 0.236" L x 0.161" W (6.00mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
Submit your RFQ for ECH-U1H154JX9 and get a quote within 24 hours.
