Panasonic Electronic Components

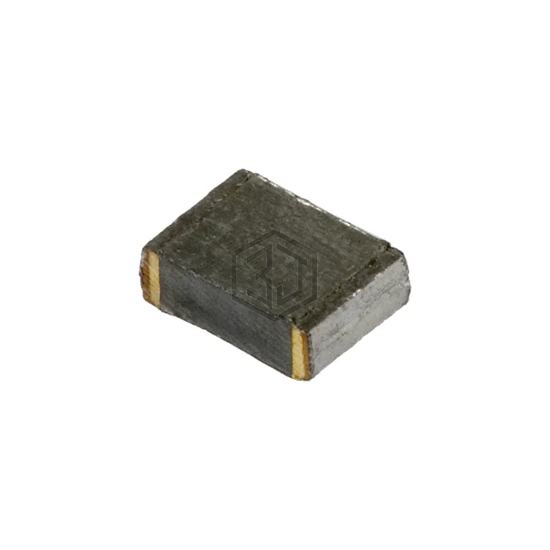

CAP FILM 0.082UF 5% 16VDC 1210
ECH-U1C823JB5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.082UF 5% 16VDC 1210. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 16V, package / case 1210 (3225 Metric).
In Stock: 712
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.082 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 11V |
| Voltage Rating - DC | 16V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
Submit your RFQ for ECH-U1C823JB5 and get a quote within 24 hours.
