Panasonic Electronic Components
CAP FILM 4700PF 2% 16VDC 0805

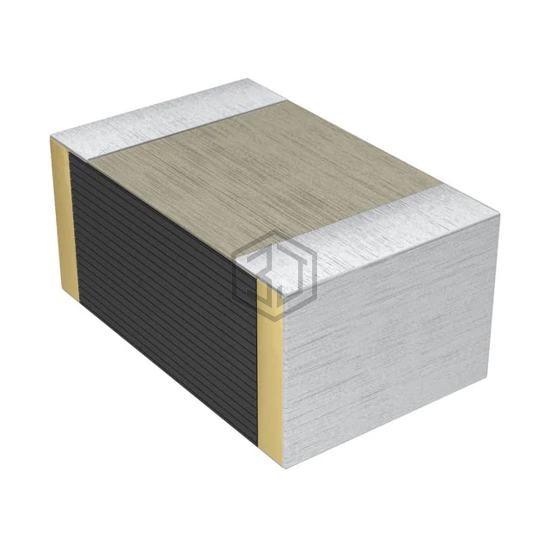

ECH-U1C472GX5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4700PF 2% 16VDC 0805. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 16V, package / case 0805 (2012 Metric).
In Stock: 67,221
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±2% |
| Voltage Rating - AC | 11V |
| Voltage Rating - DC | 16V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
