Panasonic Electronic Components
CAP FILM 0.022UF 5% 16VDC 1206

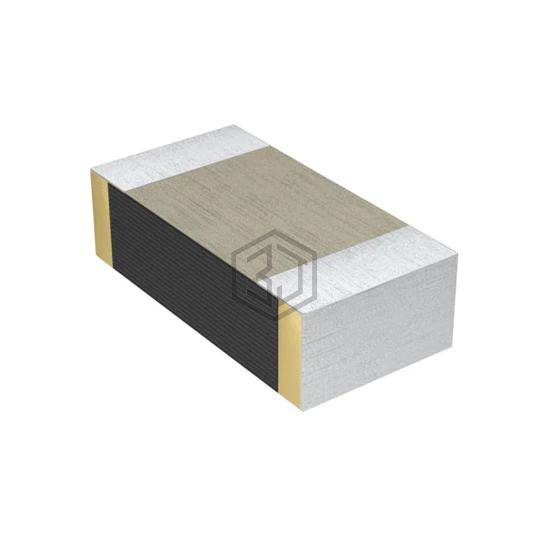

ECH-U1C223JX5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.022UF 5% 16VDC 1206. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 16V, package / case 1206 (3216 Metric).
In Stock: 36,223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 11V |
| Voltage Rating - DC | 16V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDBAA2220JC5N0 | KEMET | CAP FILM 0.022UF 5% 16VDC 1206 | 100% | View |
| FCP1206C223J | Cornell Dubilier Electronics (CDE) | CAP FILM 0.022UF 5% 16VDC 1206 | 100% | View |
| 63MU223MZ12012 | Rubycon | CAP FILM 0.022UF 20% 63VDC 0805 | 76% | View |
| 100ST223M3216 | Rubycon | CAP FILM 0.022UF 20% 100VDC 1206 | 71% | View |
| SMC5.7223J50J33TR12 | KEMET | CAP FILM 0.022UF 5% 50VDC 2220 | 70% | View |
| LDECC2220KA5N00 | KEMET | CAP FILM 0.022UF 10% 50VDC 1812 | 66% | View |
Submit your RFQ for ECH-U1C223JX5 and get a quote within 24 hours.
