Panasonic Electronic Components
CAP FILM 0.068UF 2% 100VDC 2416

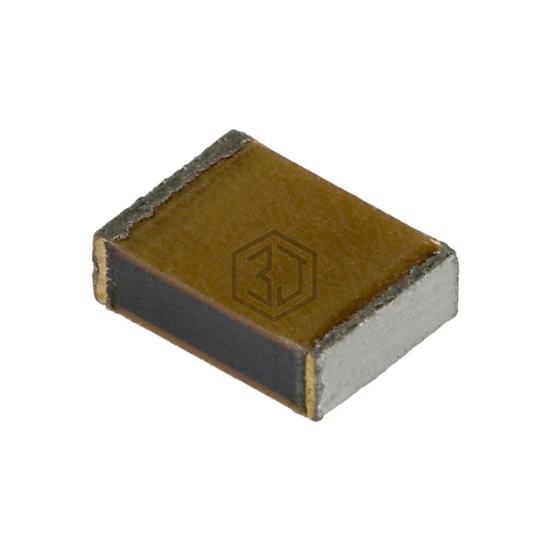

ECH-U1683GC9 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 2% 100VDC 2416. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 100V, package / case 2416 (6041 Metric).
In Stock: 2,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.068 µF |
| Tolerance | ±2% |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 2416 (6041 Metric) |
| Size / Dimension | 0.236" L x 0.161" W (6.00mm x 4.10mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
