Panasonic Electronic Components
CAP FILM 8200PF 2% 10VDC 0805

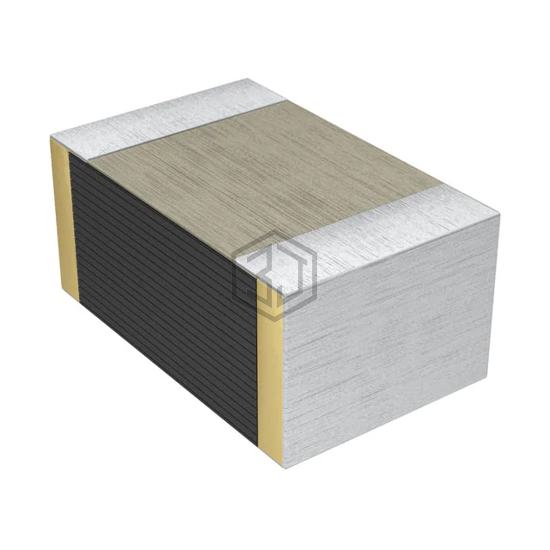

ECH-U01822GX5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8200PF 2% 10VDC 0805. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 10V, package / case 0805 (2012 Metric).
In Stock: 9,701
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 pF |
| Tolerance | ±2% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 10V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECH-U01822GX5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECH-U1C822GX5 | Panasonic Electronic Components | CAP FILM 8200PF 2% 16VDC 0805 | 92% | View |
| FCP0805C822J-J2 | Cornell Dubilier Electronics (CDE) | CAP FILM 8200PF 5% 16VDC 0805 | 92% | View |
| ECH-U1C822JB5 | Panasonic Electronic Components | CAP FILM 8200PF 5% 16VDC 0805 | 92% | View |
| ECW-U2822KC9 | Panasonic Electronic Components | CAP FILM 8200PF 10% 250VDC 1913 | 71% | View |
| LDEEA1820JA0N00 | KEMET | CAP FILM 8200PF 5% 100VDC 1206 | 71% | View |
| LDEEA1820KA0N00 | KEMET | CAP FILM 8200PF 10% 100VDC 1206 | 71% | View |
Submit your RFQ for ECH-U01822GX5 and get a quote within 24 hours.
