Panasonic Electronic Components
CAP FILM 5600PF 5% 10VDC 0603

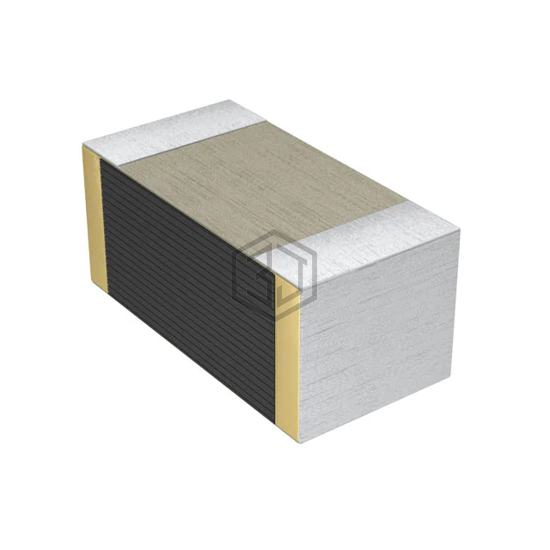

ECH-U01562JX5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 5600PF 5% 10VDC 0603. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating - dc 10V, package / case 0603 (1608 Metric).
In Stock: 2,415
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 10V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECH-U01562JX5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECH-U1C562GX5 | Panasonic Electronic Components | CAP FILM 5600PF 2% 16VDC 0805 | 92% | View |
| ECW-U2562KC9 | Panasonic Electronic Components | CAP FILM 5600PF 10% 250VDC 1913 | 71% | View |
| LDBCA1560JC5N0 | KEMET | CAP FILM 5600PF 5% 50VDC 1206 | 71% | View |
| ECH-U1H562JX5 | Panasonic Electronic Components | CAP FILM 5600PF 5% 50VDC 1206 | 71% | View |
| ECH-U1H562GX5 | Panasonic Electronic Components | CAP FILM 5600PF 2% 50VDC 1206 | 71% | View |
| LDECA1560KA0N00 | KEMET | CAP FILM 5600PF 10% 50VDC 1206 | 71% | View |
