Panasonic Electronic Components
CAP FILM 0.056UF 5% 50VDC RADIAL

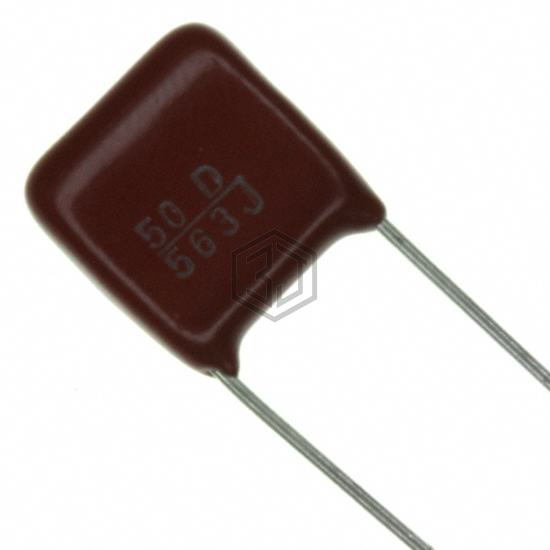

ECH-S1H563JZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.056UF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - dc 50V, package / case Radial.
In Stock: 6,714
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECH-S1H563JZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C1563M289 | EPCOS - TDK Electronics | CAP FILM 0.056UF 20% RADIAL | 100% | View |
| 185563J63RAB-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.056UF 5% 63VDC RADIAL | 96% | View |
| 185563K63RAA-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.056UF 10% 63VDC RAD | 96% | View |
| WMF1S56K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.056UF 100VDC AXIAL | 88% | View |
| R75TN256050H3J | KEMET | CAP FILM 0.056UF 5% 1.6KVDC RAD | 71% | View |
| R75UN256050H3J | KEMET | CAP FILM 0.056UF 5% 2KVDC RADIAL | 71% | View |
Submit your RFQ for ECH-S1H563JZ and get a quote within 24 hours.
