Panasonic Electronic Components
CAP FILM 0.39UF 5% 100VDC RADIAL

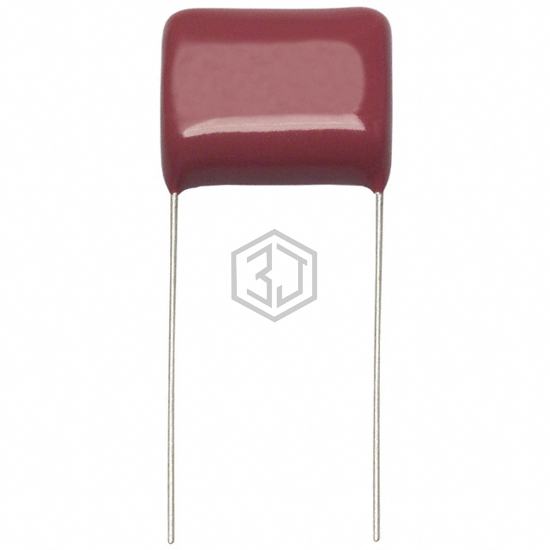

ECH-S1394JZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.39UF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - dc 100V, package / case Radial.
In Stock: 6,926
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.39 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.807" L x 0.413" W (20.50mm x 10.50mm) |
| Height - Seated (Max) | 0.795" (20.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECH-S1394JZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC247028394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 100VDC RAD | 100% | View |
| BFC247019394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 63VDC RADIAL | 92% | View |
| BFC247075394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 63VDC RADIAL | 92% | View |
| B32529C0394J289 | EPCOS - TDK Electronics | CAP FILM 0.39UF 5% 63VDC RADIAL | 92% | View |
| BFC247012394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 63VDC RADIAL | 92% | View |
| B32521C3394K000 | EPCOS - TDK Electronics | CAP FILM 0.39UF 10% 250VDC RAD | 84% | View |
Submit your RFQ for ECH-S1394JZ and get a quote within 24 hours.
