Panasonic Electronic Components
CAP FILM 0.22UF 5% 100VDC RADIAL

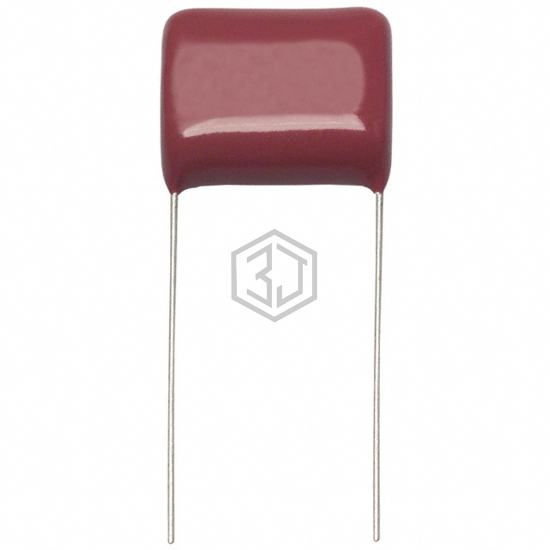

ECH-S1224JZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - dc 100V, package / case Radial.
In Stock: 2,364
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.807" L x 0.335" W (20.50mm x 8.50mm) |
| Height - Seated (Max) | 0.677" (17.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
ECH-S1224JZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32520C1224J000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 5% 100VDC RADIAL | 100% | View |
| MKS4D032202B00MB00 | WIMA | CAP FILM 0.22UF 20% 100VDC RAD | 100% | View |
| MKS4C032202B00MB00 | WIMA | CAP FILM 0.22UF 20% 63VDC RADIAL | 92% | View |
| B32521C3224M289 | EPCOS - TDK Electronics | CAP FILM 0.22UF 20% 250VDC RAD | 84% | View |
| R71XF322050H0K | KEMET | FILM, RADIAL, PULSE, SINGLE META | 73% | View |
| B32672T6224K000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 10% 630VDC RAD | 71% | View |
Submit your RFQ for ECH-S1224JZ and get a quote within 24 hours.
