Panasonic Electronic Components

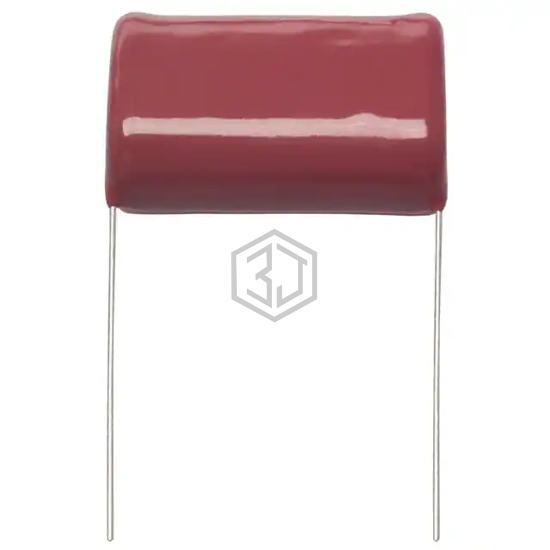

CAP FILM 3UF 5% 250VAC RADIAL
ECH-A25305JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3UF 5% 250VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 250V, package / case Radial.
In Stock: 4,019
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.457" L x 0.650" W (37.00mm x 16.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.280" (32.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A25305JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FG60305JA | Panasonic Electronic Components | CAP FILM 3UF 600VDC RADIAL | 100% | View |
| B32774D1305J000 | EPCOS - TDK Electronics | CAP FILM 3UF 5% 1.3KVDC RADIAL | 100% | View |
| MKP1847C530355K2 | Vishay Beyschlag/Draloric/BC Components | MKP 3F 10% 350VAC PITCH 27,5 | 94% | View |
| MKP385530100JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3UF 5% 1KVDC RADIAL | 94% | View |
| 305PHC700K | Cornell Dubilier / Illinois Capacitor | CAP FILM 3UF 10% 700VDC AXIAL | 92% | View |
| PSB1704300KJS | Nichicon | FILM CAP BOXED RADIAL | 91% | View |
