Panasonic Electronic Components

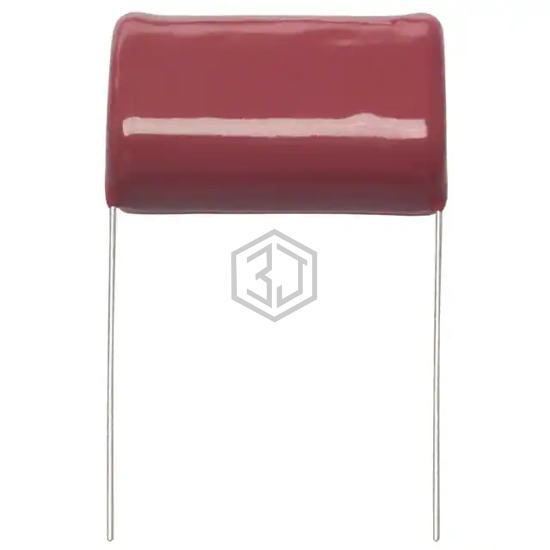

CAP FILM 4UF 5% 220VAC RADIAL
ECH-A22405JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4UF 5% 220VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 220V, package / case Radial.
In Stock: 8,084
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 220V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.457" L x 0.630" W (37.00mm x 16.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.280" (32.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A22405JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848SE54050JK2A | Vishay Roederstein | 4F 5% TOLERANCE 500VDC PITCH: 27 | 100% | View |
| PHC1604400KN | Nichicon | FILM CAP CYLINDRICAL AXIAL | 93% | View |
| MKP1847540354K2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4UF 5% 350VAC RADIAL | 92% | View |
| MHBS604400KJS | Nichicon | FILM CAP RADIAL | 89% | View |
| PPA1704400KS | Nichicon | FILM CAP CYLINDRICAL AXIAL | 89% | View |
| PSB1704400KJL | Nichicon | FILM CAP BOXED RADIAL | 89% | View |
Submit your RFQ for ECH-A22405JX and get a quote within 24 hours.
