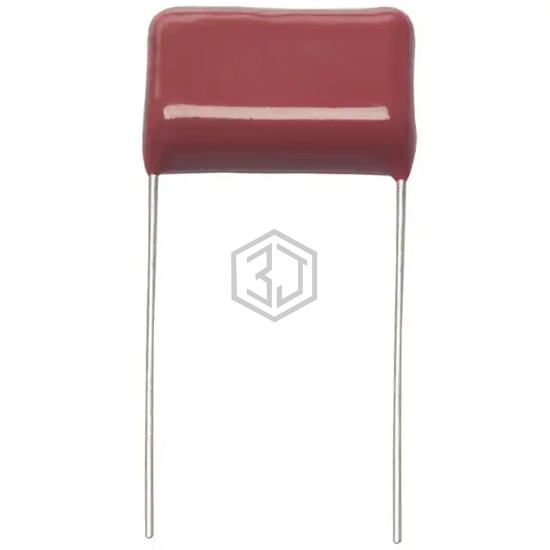

Panasonic Electronic Components
CAP FILM 2UF 5% 220VAC RADIAL
ECH-A22205JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2UF 5% 220VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 220V, package / case Radial.
In Stock: 8,668
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 220V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.551" W (26.50mm x 14.00mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A22205JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BLH205K112A042 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 100% | View |
| MKP1847C520235K2 | Vishay Beyschlag/Draloric/BC Components | MKP 2F 10% 230VAC PITCH 27,5 | 99% | View |
| 205PHC400K | Cornell Dubilier / Illinois Capacitor | CAP FILM 2UF 10% 400VDC AXIAL | 98% | View |
| MKP383520025JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 250VDC RADIAL | 90% | View |
| MKP1847H52048JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1KVDC RADIAL | 86% | View |
| PSB1854200KJS | Nichicon | FILM CAP BOXED RADIAL | 85% | View |
Submit your RFQ for ECH-A22205JX and get a quote within 24 hours.
