Panasonic Electronic Components
CAP FILM 6UF 5% 180VAC RADIAL

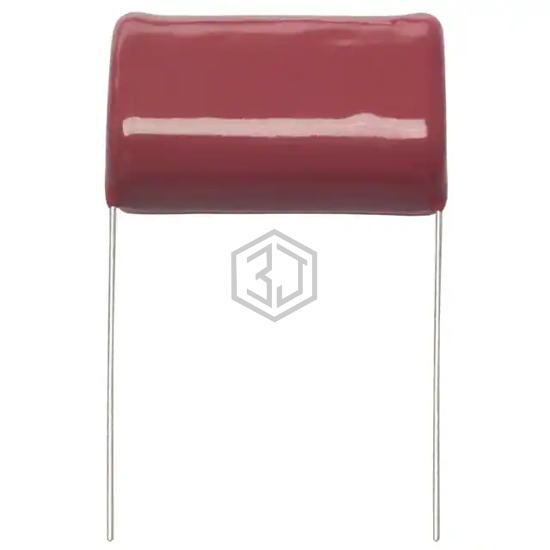

ECH-A18605JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 6UF 5% 180VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 180V, package / case Radial.
In Stock: 1,006
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 180V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.457" L x 0.650" W (37.00mm x 16.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.280" (32.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A18605JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EZP-V1B605LTB | Panasonic Electronic Components | CAP FILM 6UF 10% 1100V RADIAL | 100% | View |
| MKP1848H56012JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6UF 5% 1.2KVDC RADIAL | 100% | View |
| EFDKA1AK605D122LH | Eaton - Electronics Division | CAP FILM 6UF 10% 1000VDC RAD | 100% | View |
| MKP1847C560235K2 | Vishay Beyschlag/Draloric/BC Components | MKP 6F 10% 230VAC PITCH 27,5 | 96% | View |
| MHBS504600KHS | Nichicon | FILM CAP RADIAL | 88% | View |
| PHB1704600KRS | Nichicon | FILM CAP BOXED RADIAL | 86% | View |
Submit your RFQ for ECH-A18605JX and get a quote within 24 hours.
