Panasonic Electronic Components

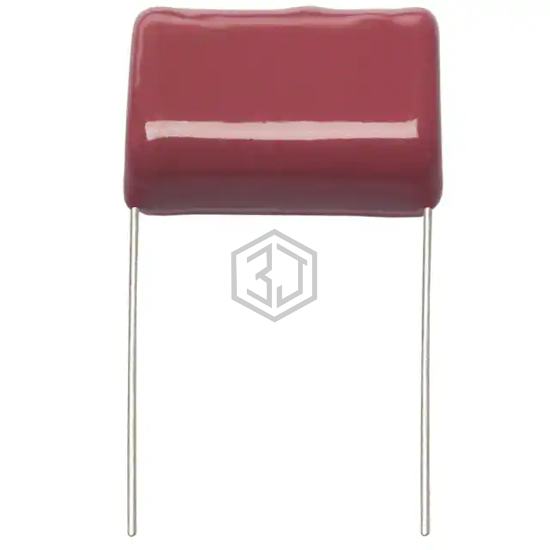

CAP FILM 4UF 5% 180VAC RADIAL
ECH-A18405JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4UF 5% 180VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 180V, package / case Radial.
In Stock: 4,603
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 180V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.571" W (31.50mm x 14.50mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A18405JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848SE54050JK2A | Vishay Roederstein | 4F 5% TOLERANCE 500VDC PITCH: 27 | 100% | View |
| 405K100CS4-FA | Cornell Dubilier Electronics (CDE) | CAP NETWORK 4UF 100V 6DIP | 100% | View |
| MABA034400KHL | Nichicon | FILM CAP BOXED RADIAL | 94% | View |
| MKP1847H54031JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4UF 5% 630VDC RADIAL | 90% | View |
| 405PHB600K2J | Cornell Dubilier / Illinois Capacitor | CAP FILM 4UF 10% 600VDC RADIAL | 88% | View |
| MHBS604400KJS | Nichicon | FILM CAP RADIAL | 85% | View |
Submit your RFQ for ECH-A18405JX and get a quote within 24 hours.
