Panasonic Electronic Components

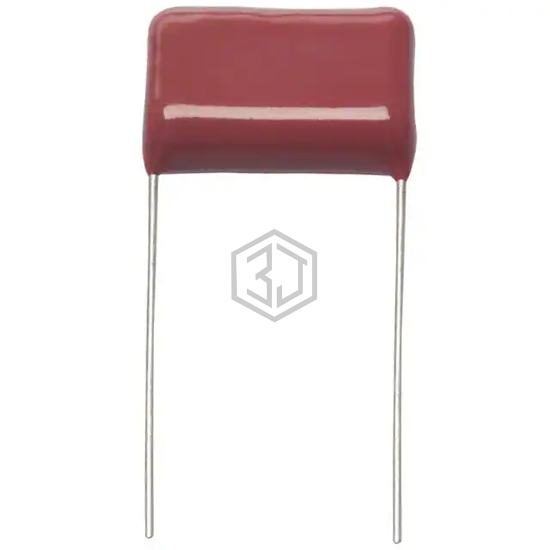

CAP FILM 2UF 5% 180VAC RADIAL
ECH-A18205JX is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2UF 5% 180VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 180V, package / case Radial.
In Stock: 7,449
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 180V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Polyethylene, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.453" W (26.50mm x 11.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
ECH-A18205JX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848C52060JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 600VDC RADIAL | 100% | View |
| 735P205X9200L | Cornell Dubilier Electronics (CDE) | CAP FILM 2UF 10% 200VDC AXIAL | 100% | View |
| MKP385520025JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 250VDC RADIAL | 98% | View |
| MKP1847520254K2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 250VAC RADIAL | 94% | View |
| MKP385520016JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 160VDC RADIAL | 91% | View |
| MKP385520100JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1KVDC RADIAL | 88% | View |
Submit your RFQ for ECH-A18205JX and get a quote within 24 hours.
