Panasonic Electronic Components

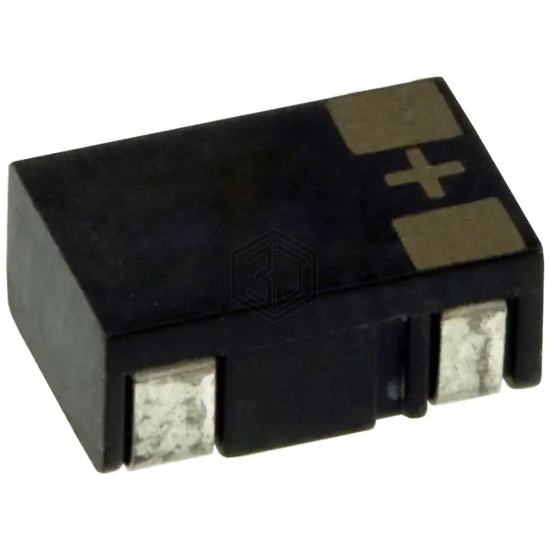

CAP ALUM POLY 6.8UF 20% 16V SMD
ECG-C1CB6R8R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 6.8UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Nonstandard SMD.
In Stock: 4,861
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.311" L x 0.209" W (7.90mm x 5.30mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
| Surface Mount Land Size | 0.311" L x 0.209" W (7.90mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
ECG-C1CB6R8R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECG-C1CB4R7R | Panasonic Electronic Components | CAP ALUM POLY 4.7UF 20% 16V SMD | 81% | View |
| ECG-C0KB8R2R | Panasonic Electronic Components | CAP ALUM POLY 8.2UF 20% 8V SMD | 62% | View |
| ECG-C1BA4R7R | Panasonic Electronic Components | CAP ALUM POLY 4.7UF 12.5V SMD | 55% | View |
| ECG-C0JB100R | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 6.3V SMD | 52% | View |
