Panasonic Electronic Components
CAP ALUM 22UF 20% 100V SMD

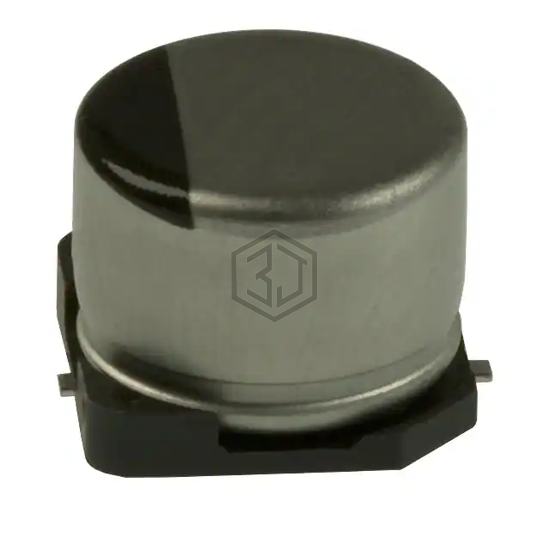

ECE-V2AA220UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 4,497
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V2AA220UP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHD226M63F24T | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 79% | View |
| MVA63VC22RMF80TP | United Chemi-Con | CAP ALUM 22UF 20% 63V SMD | 76% | View |
| RAVVT220M1UDE7002U | Taiyo Yuden | CAP ALUM 22UF 20% 50V SMD | 70% | View |
| UCL1C220MCL6GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| EMVE250ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 25V SMD | 56% | View |
| UUP1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 51% | View |
Submit your RFQ for ECE-V2AA220UP and get a quote within 24 hours.
