Panasonic Electronic Components

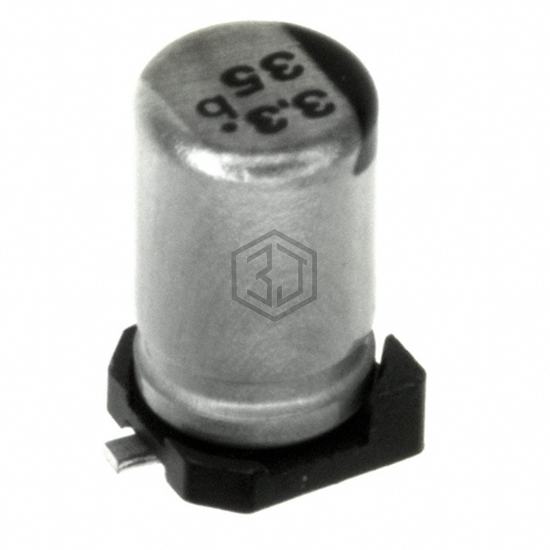

CAP ALUM 3.3UF 20% 35V SMD
ECE-V1VS3R3SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3.3UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,950
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1VS3R3SR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUP1E3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 25V SMD | 80% | View |
| 335SVH050MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 50V SMD | 74% | View |
| 50SLV3.3M4X6.1 | Rubycon | CAP ALUM 3.3UF 20% 50V SMD | 74% | View |
| EMVE500ADA3R3MD55G | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
| UUD1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
| EMVA500ADA3R3MD55G | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
Submit your RFQ for ECE-V1VS3R3SR and get a quote within 24 hours.
