Panasonic Electronic Components

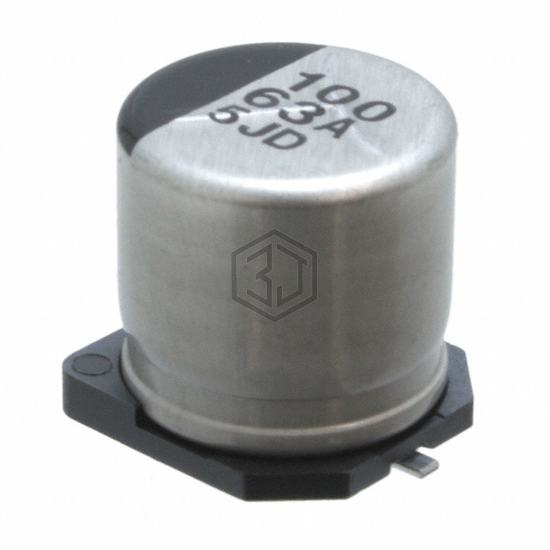

CAP ALUM 100UF 20% 63V SMD
ECE-V1JA101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,427
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1JA101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1A101MCL1GS | Nichicon | CAP ALUM 100UF 20% 10V SMD | 71% | View |
| MVY100VE101ML17TR | United Chemi-Con | CAP ALUM 100UF 20% 100V SMD | 70% | View |
| AVGA107M10D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 10V SMD | 67% | View |
| MVA16VC101MF55TP | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 66% | View |
| AVEK107M50G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 50V SMD | 59% | View |
| 107SML050MD10 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 50V SMD | 55% | View |
