Panasonic Electronic Components

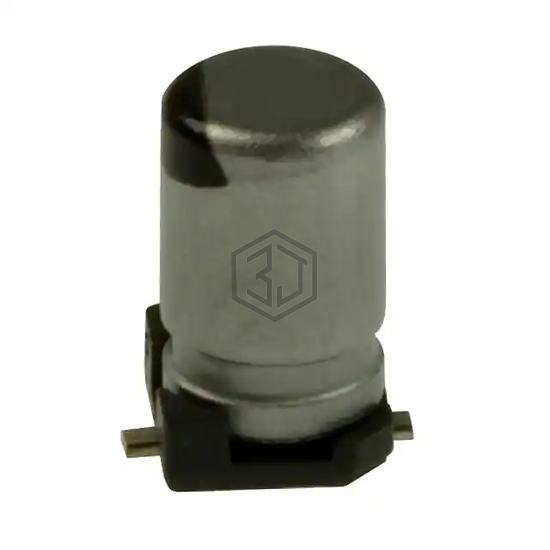

CAP ALUM 0.33UF 20% 50V SMD
ECE-V1HSR33SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 0.33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,869
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1HSR33SR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-1HAR33SR | Panasonic Electronic Components | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| UUL1HR33MCL1GS | Nichicon | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| UWT1HR33MCR2GB | Nichicon | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| MALSECA00AB033HARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| UWP1HR33MCL1GB | Nichicon | CAP ALUM 0.33UF 20% 50V SMD | 98% | View |
| 334SML050MD4 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 0.33UF 20% 50V SMD | 79% | View |
