Panasonic Electronic Components

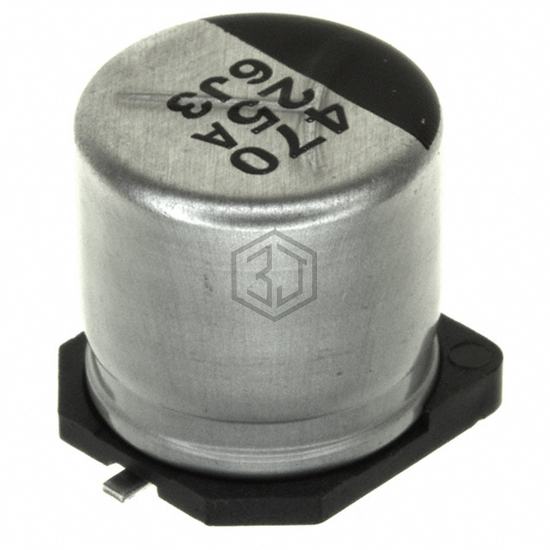

CAP ALUM 470UF 20% 25V SMD
ECE-V1EA471P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,341
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1EA471P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK477M025S9PAA | KEMET | CAP ALUM 470UF 20% 25V SMD | 100% | View |
| UWD1E471MCL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 96% | View |
| EMZR250ARA471MHA0G | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 96% | View |
| EEE-FK1C471AV | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 81% | View |
| EDK477M010A9MAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 71% | View |
| UUD1C471MNL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 65% | View |
Submit your RFQ for ECE-V1EA471P and get a quote within 24 hours.
