Panasonic Electronic Components
CAP ALUM 100UF 20% 25V SMD

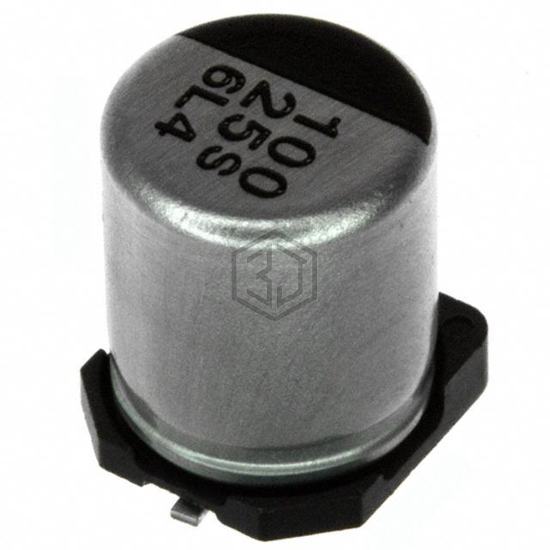

ECE-V1EA101XP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,855
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 143 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
ECE-V1EA101XP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEJ101M1ETR-0607S | Surge | CAP ALUM 25V POLAR | 88% | View |
| CGS035M101F10PE50V00A | Suscon | CAP ALUM 100UF 20% 35V SMD | 86% | View |
| AHD107M25F24T | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 83% | View |
| VKLD1001V101MVTM | Ymin | CAP ALUM 35V POLAR | 82% | View |
| CTS035M101E7DPE50V00A | Suscon | CAP ALUM 100UF 20% 35V SMD | 80% | View |
| VZT101M1CTR-0506S | Surge | CAP ALUM 16V POLAR | 79% | View |
