Panasonic Electronic Components

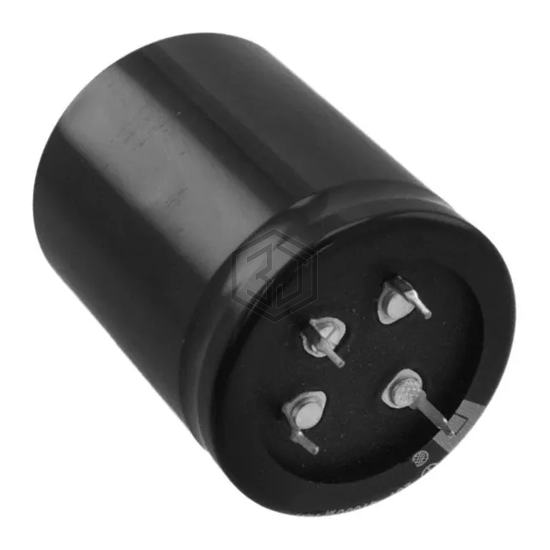

CAP ALUM 560UF 20% 450V SNAP
ECE-T2WA561FA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 3,389
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 296mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.94 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T2WA561FA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXH560MEFC35X35 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 92% | View |
| 567LMX250M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 250V SNAP | 79% | View |
| EKMH251VNN561MA30U | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| 100ZLJ560MGC18X31.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 71% | View |
| 220MXC560MEFC30X30 | Rubycon | CAP ALUM 560UF 20% 220V SNAP | 69% | View |
| B43508E2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 68% | View |
Submit your RFQ for ECE-T2WA561FA and get a quote within 24 hours.
