Panasonic Electronic Components
CAP ALUM 560UF 20% 450V SNAP

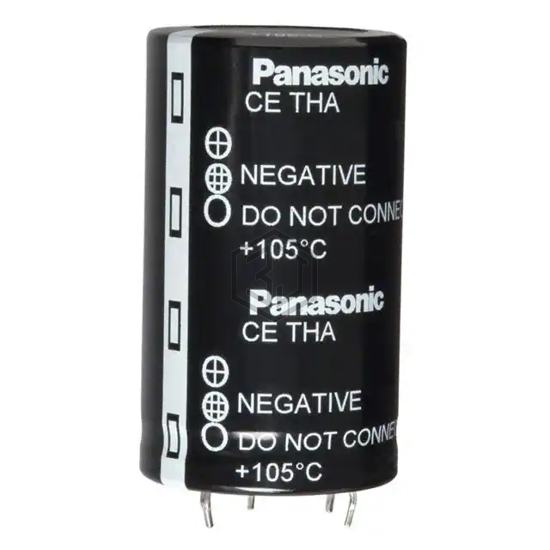

ECE-T2WA561EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 5,928
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 296mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.01 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.480" (63.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T2WA561EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544A5567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 100% | View |
| 450VXG560MEFC35X50 | Rubycon | CAP ALUM 560UF 20% 450V SNAP | 98% | View |
| LGGW6561MELC40 | Nichicon | CAP ALUM 560UF 20% 420V SNAP | 92% | View |
| LGN2G561MELB50 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 91% | View |
| B43508B9567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 90% | View |
| 200MXC560MEFCSN25X30 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
Submit your RFQ for ECE-T2WA561EA and get a quote within 24 hours.
