Panasonic Electronic Components

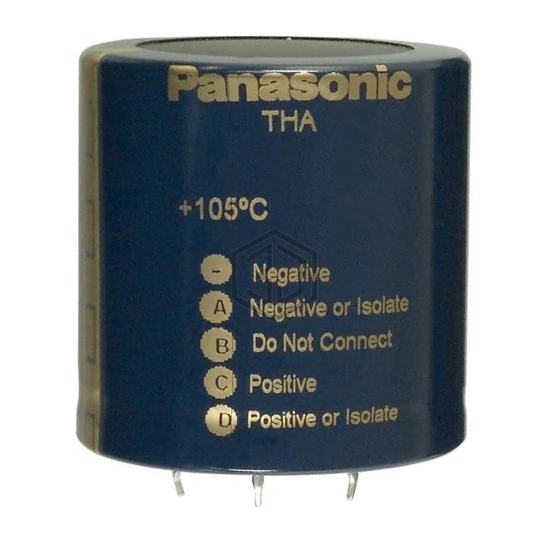

CAP ALUM 470UF 20% 450V SNAP
ECE-T2WA471EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 3,825
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 353mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.436 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T2WA471EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B5477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 98% | View |
| EKMH401VNN471MA45U | United Chemi-Con | CAP ALUM 470UF 20% 400V SNAP | 96% | View |
| LQS2G471MELC35 | Nichicon | CAP ALUM 470UF 20% 400V SNAP | 91% | View |
| 475MXH470MEFCSN30X60 | Rubycon | CAP ALUM 470UF 20% 475V SNAP | 88% | View |
| 400MXG470MEFCSN30X45 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 88% | View |
| 381LQ471M315K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 315V SNAP | 79% | View |
Submit your RFQ for ECE-T2WA471EA and get a quote within 24 hours.
