Panasonic Electronic Components

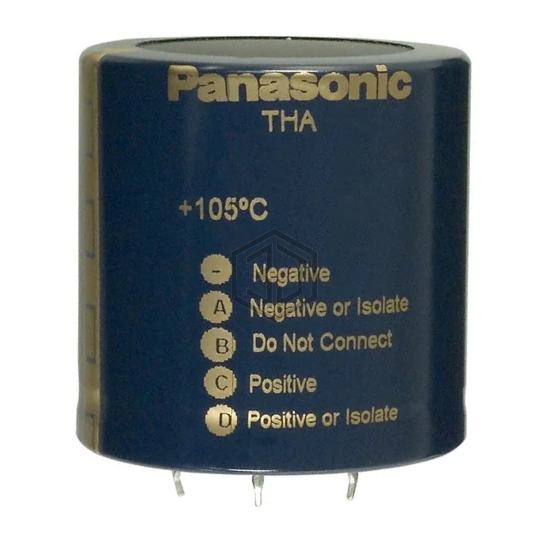

CAP ALUM 4700UF 20% 100V SNAP
ECE-T2AA472EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 2,495
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 53mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.37 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T2AA472EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VNN472MA50S | United Chemi-Con | CAP ALUM 4700UF 20% 100V SNAP | 99% | View |
| UBY1E472MHL1 | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 77% | View |
| ELXZ250ELL472ML40S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 71% | View |
| EKYB250ELL472MLN3S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 69% | View |
| EEU-FM0J472L | Panasonic Electronic Components | CAP ALUM 4700UF 20% 6.3V RADIAL | 68% | View |
| B41888C7478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 35V RADIAL | 65% | View |
Submit your RFQ for ECE-T2AA472EA and get a quote within 24 hours.
