Panasonic Electronic Components
CAP ALUM 47000UF 20% 35V SNAP

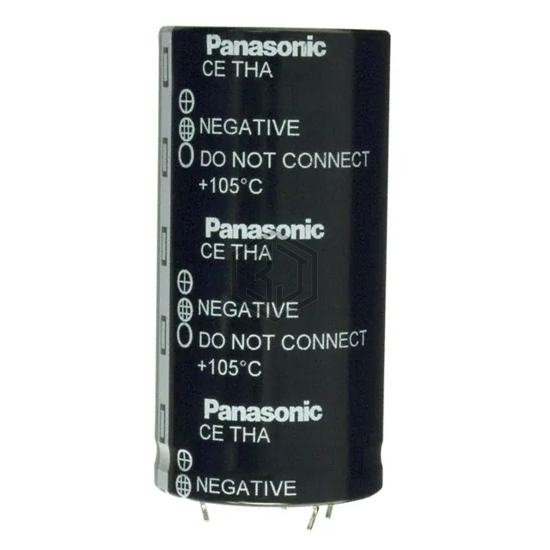

ECE-T1VA473FA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 8,260
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.79 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.959 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T1VA473FA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXG47000MEFCSN35X50 | Rubycon | CAP ALUM 47000UF 20% 25V SNAP | 80% | View |
| 16MXC47000MEFCSN35X40 | Rubycon | CAP ALUM 47000UF 20% 16V SNAP | 63% | View |
| MAL215845473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 16V SNAP | 62% | View |
| 16VXG47000MEFC35X50 | Rubycon | CAP ALUM 47000UF 20% 16V SNAP | 62% | View |
| EKMH160VSN473MA45S | United Chemi-Con | CAP ALUM 47000UF 20% 16V SNAP | 60% | View |
| EKMH160VNN473MA45W | United Chemi-Con | CAP ALUM 47000UF 20% 16V SNAP | 60% | View |
Submit your RFQ for ECE-T1VA473FA and get a quote within 24 hours.
