Panasonic Electronic Components
CAP ALUM 10000UF 20% 80V SNAP

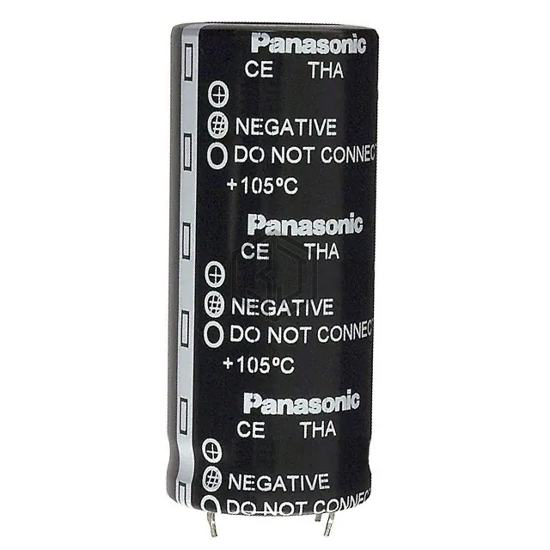

ECE-T1KA103EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 7,812
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 31mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.612 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T1KA103EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205847103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 71% | View |
| 50MXC10000MEFCSN30X50 | Rubycon | CAP ALUM 10000UF 20% 50V SNAP | 70% | View |
| E81D800VNN103MA80U | United Chemi-Con | CAP ALUM 10000UF 20% 80V SNAP | 69% | View |
| MAL215866103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 25V SNAP | 66% | View |
| B41605B109M9 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 55V RADIAL | 66% | View |
| ELXZ6R3ELL103ML35S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 51% | View |
Submit your RFQ for ECE-T1KA103EA and get a quote within 24 hours.
