Panasonic Electronic Components

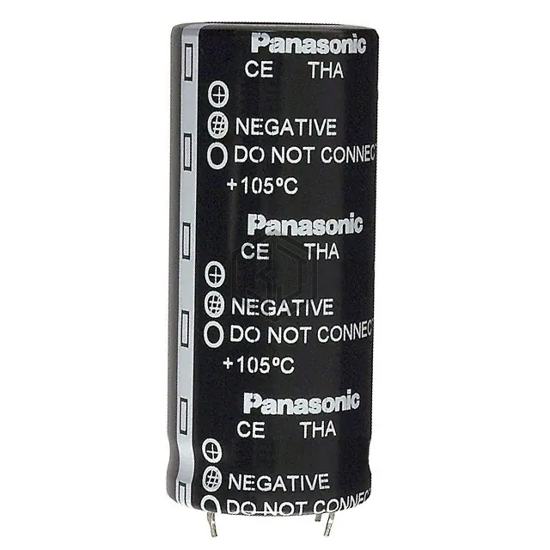

CAP ALUM 56000UF 20% 25V SNAP
ECE-T1EA563EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 6,651
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.338 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
ECE-T1EA563EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH350VQT563MB80U | United Chemi-Con | CAP ALUM 56000UF 20% 35V SNAP | 85% | View |
| SLP563M010H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 56000UF 20% 10V SNAP | 63% | View |
| B41252A3569M | EPCOS - TDK Electronics | CAP ALUM 56000UF 20% 10V SNAP | 62% | View |
| 381LX563M010A042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 56000UF 20% 10V SNAP | 61% | View |
| MAL216244473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 10V SNAP | 57% | View |
| EKMH100VSN563MR50U | United Chemi-Con | CAP ALUM 56000UF 20% 10V SNAP | 56% | View |
Submit your RFQ for ECE-T1EA563EA and get a quote within 24 hours.
