Panasonic Electronic Components
CAP ALUM 470UF 20% 100V SNAP

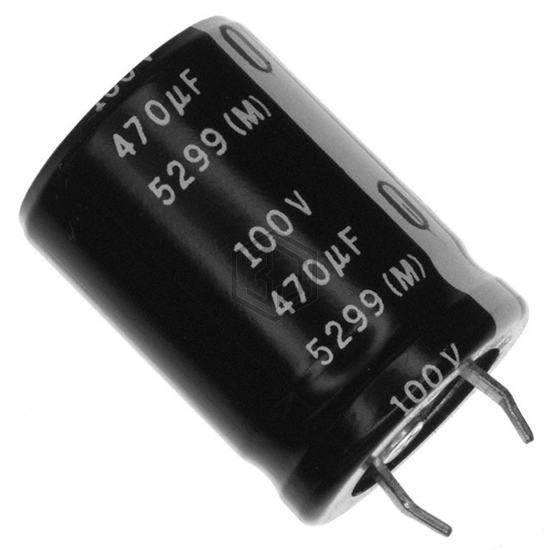

ECE-S2AG471E is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,764
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECE-S2AG471E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K471MHD | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 83% | View |
| RXK471M1VBK-1025S | SURGE | CAP ALUM 470UF 20% 35V RADIAL | 77% | View |
| LGU2Z471MELB | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 65% | View |
| B43508B9477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 62% | View |
| 16ZLJ470MT78X11.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 61% | View |
| UPA1C471MPD1TD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 55% | View |
Submit your RFQ for ECE-S2AG471E and get a quote within 24 hours.
