Panasonic Electronic Components

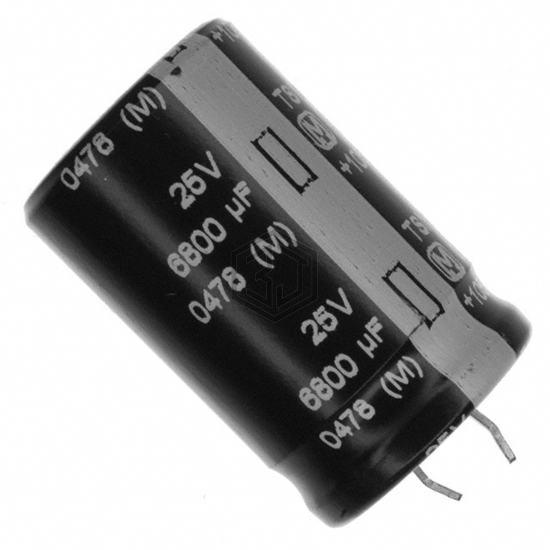

CAP ALUM 6800UF 20% 25V SNAP
ECE-S1EG682M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,876
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.99 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECE-S1EG682M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252A7688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 35V SNAP | 86% | View |
| LGY1H682MELA45 | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 77% | View |
| 10YXJ6800MGC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 73% | View |
| 10YXS6800MEFC18X20 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 72% | View |
| EKMH500VSN682MQ50S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 69% | View |
| MAL215848682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 54% | View |
Submit your RFQ for ECE-S1EG682M and get a quote within 24 hours.
