Panasonic Electronic Components
CAP ALUM 22000UF 20% 25V SNAP

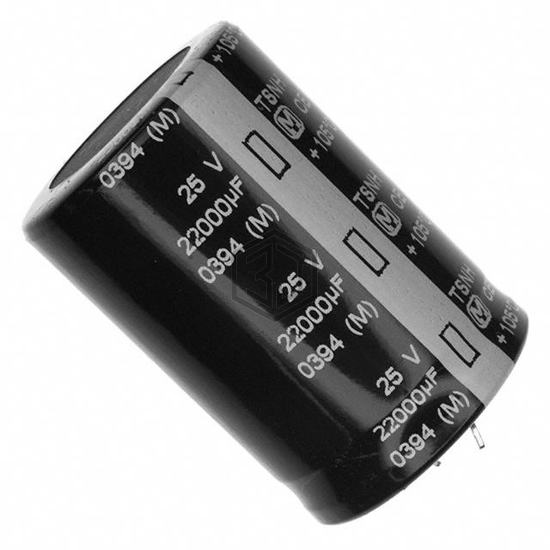

ECE-S1EG223Z is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 3,441
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.6 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECE-S1EG223Z is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VSN223MR45T | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 99% | View |
| 35MXG22000MEFCSN35X40 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 80% | View |
| MALIEYH07DB522F42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 35V SNAP | 79% | View |
| MALIEYH07CC522F02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 35V SNAP | 79% | View |
| EKMH160VNN223MR35U | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 76% | View |
| 10MXC22000MEFC22X45 | Rubycon | CAP ALUM 22000UF 20% 10V SNAP | 58% | View |
Submit your RFQ for ECE-S1EG223Z and get a quote within 24 hours.
