Panasonic Electronic Components
CAP ALUM 4700UF 20% 16V SNAP

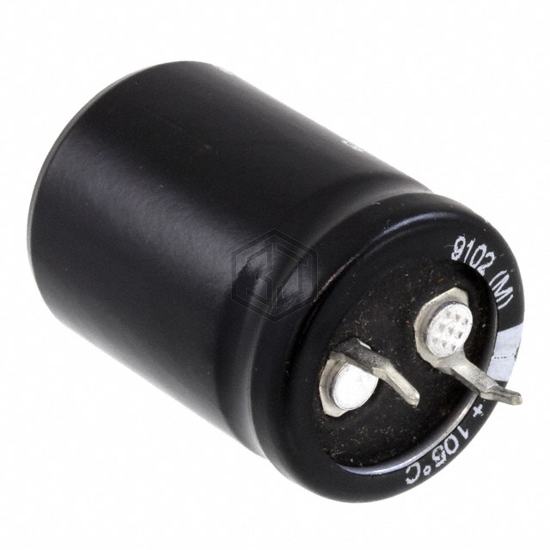

ECE-S1CG472E is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 1,765
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECE-S1CG472E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1C472MHD | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 92% | View |
| B41888C4478M | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 16V RADIAL | 85% | View |
| LGY1H472MELA35 | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 77% | View |
| 478LMB050M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 50V SNAP | 77% | View |
| MAL225066472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 75% | View |
| EKYB6R3ELL472MK25S | United Chemi-Con | CAP ALUM 4700UF 20% 6.3V RADIAL | 75% | View |
Submit your RFQ for ECE-S1CG472E and get a quote within 24 hours.
